Warm Tube Clock v2 - User pictures

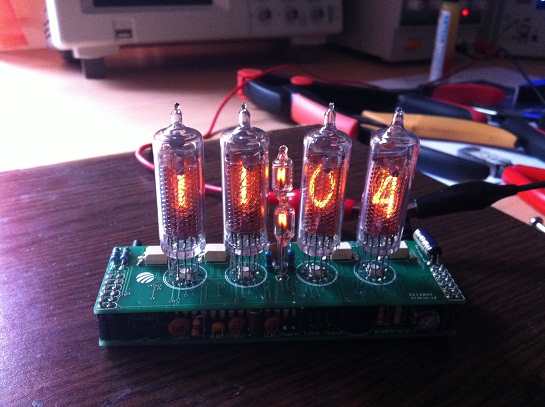

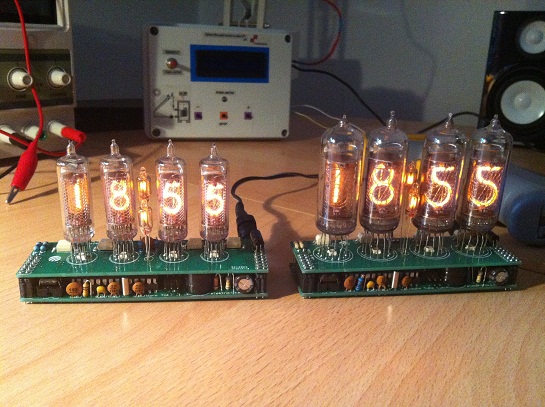

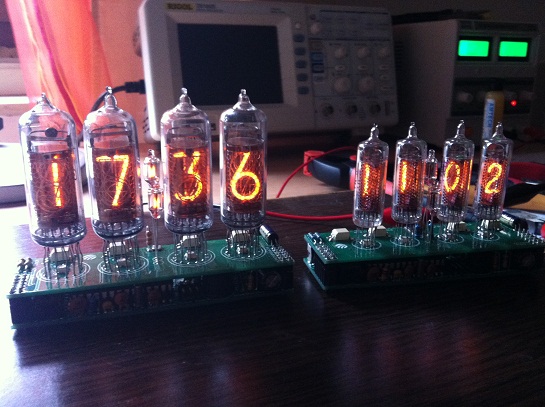

[Ruslan] sent us few pictures of his Warm Tube Clock v2 Nixie clocks and a Youtube video.

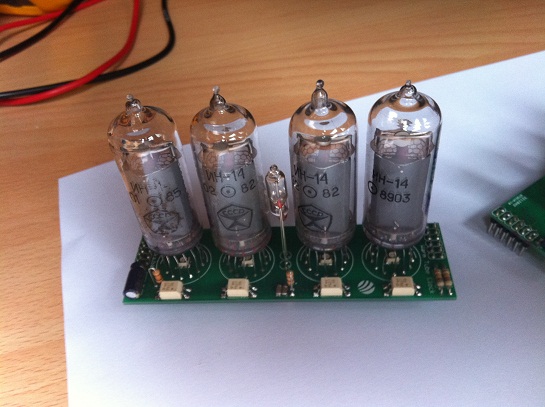

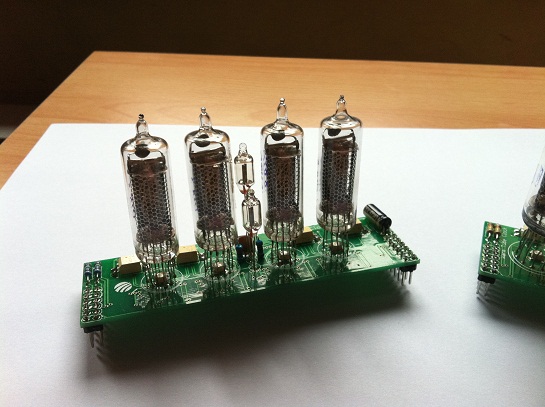

This version of clock uses DS3231 RTC IC and is fully compatible with DS3232. It is also pin-compatible with previous one, so it is possible to use shields of previous version on this one and vice-versa. IN-8 shield is replaced with IN-14 shield because these tubes are cheaper and easier to find.
Take look at some pictures he made for us.
© Ruslan
