/Projects/Mobile robot platform v1

They say that failure is also to be documented, so here is one project that currently has that status.

Please note that this project is abandoned.

Update 9/5/2013: After this article gained some popularity on Hackaday blog, I went to re-read what I have written 4 years ago. And now, I would just like to thank the Venus company for debugging my design at that time, it was very helpful to read their professional comments and for that I am extremely grateful. Their GPS receivers have very high sensitivity and can get fix even indoors, so that's why I have chosen them in my design. My only regret is that I didn't buy that chip on a tested breakout board from Sparkfun and then design my own PCB from their own. Please keep in mind that in 2009 when this project was worked on, there was not much about this Venus GPS chip, it was still pretty "new". I even think that Sparkfun was just about to release their breakout when I designed this, but I am not sure anymore...

I always had this idea of making my own GPS guided RC car. The hardware should not be very complicated but the software could get pretty messy. After some planning I came up with the hardware design (my robotic platform) that has integrated:
- Atmega328P (Atmega48P/88P/128P/328P series)
- HM55B digital compass module from Parallax
- PING))) ultrasonic range finder from Parallax
- Two MC33886 H-bridge controllers from Freescale
- Voltage converters to 5V and 3.3V for all electronics on board
- GPS receiver chip - Venus634FLPx from SkyTraq (bought from SparkFun)
- External LNA for more GPS RF amplification
- On-board small chip scale antenna (now you know why external LNA)
- ISP programming port for Atmega uC
- Three push-buttons with input pins accessible for additional external devices (more sensors)
- Three status LEDs with three output pins accessible for additional external devices (servos)
- Debugging with UART port for Atmega uC and GPS receiver chip

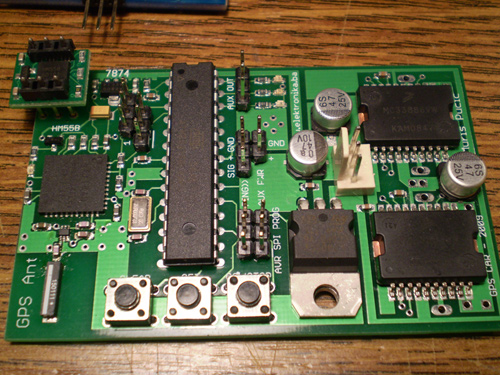

robotplatformv1overviews

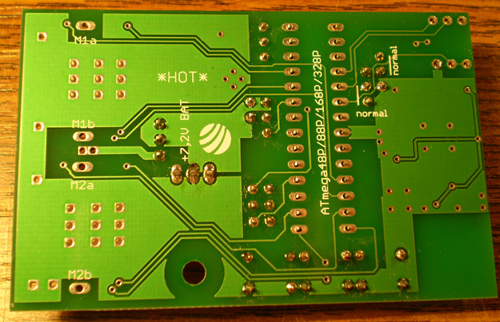

robotplatformv1bottview

The brain
Any of Atmega48P/88P/168P/328P can be the brain of the robot. Clock source is 12 MHz crystal.

robotplatformv1brain

PING))) sonar
The robot can "see" with it's sonar eye - the PING sensor. This PING sensor can be mounted on a servo motor so that the robot can see left, right and forward if such option is required. This is possible since the robot platform has extra pins that can be used to power and control the servo.

robotplatformv1ping

Digital compass
The robot can also know which direction it is facing with it's digital compass HM55B chip. This little chip has to be as far away from DC motors as possible because the motor's permanent magnets *will* cause false heading readings.

robotplatformv1compass

GPS receiver chip
Than there is the famous GPS chip, Venus634FLPx. I went for this chip because it has accuracy of <2.5m, integrated LNA, good configuration options, dataflash logging (not used in this robotic platform) and it is very small. I will talk about this GPS chip later on, as IT is the reason why I am prematurelly writing about this GPS car, actually this robotic platform so far.

robotplatformv1gps

Buttons
Aside from these input devices there are three general purpose buttons labelled as: CLEAR, SET and GO!/STOP.

robotplatformv1buttons

Motor control
Atmega can controll two DC motors; one for forward/back motion and the other for turning left/right. Most RC cars that can be purchased from toy stores have DC motor configuration for direction changing instead of servos. So I decided to control it with MC33886 H-bridge controller that can deliver up to 5 Amps. H-bridge controllers are connected to Atmega to OC0n and OC1n PWM outputs for easy motor speed as well as direction control.

robotplatformv1hbridge

Power
The platform board can be powered from batteries from some 7V up to about 25V.

Auxiliary power output
This port can be used to connect servos and other sensors to board's 5V regulated supply.

ISP programming port
It is important to provide easy access to Atmega's programming port. This port can also be used as auxiliary input/output port with 3 I/O lines which are connected to existing push-buttons on board.

LEDs
There are three LEDs that can be controlled via Atmega. They also have pins exposed so they can be used as digital outputs for controlling servos for example.

robotplatformv1auxports
Auxiliary ports

Current project status
I designed the hardware and the PCB board in Eagle and sent gerber files for PCB manufacturer BatchPCB. It took almost 50 days for the PCB to arrive. I always forget that when I order from BatchPCB it takes me to completely forget about the PCB and that's when it appears in the mail box. As they say, cheap and quick don't go along quite well.

So, why am I writing about this unlucky robot platform? Well, because my GPS receiver chip simply can't get the satellite fix. So, at this point this is a failure. I have done some RF work before at 915MHz tops, but it seams that GPS signal is extremely weak (more than I thought) and that all PCB traces *extremely* influence reception of this high-frequency RF signal. I must say, it was pretty frustrating that GPS receiver didn't work properly after all this time so (assuming that the GPS receiver chip is not factory faulty or damaged) I tried following:
- replacing the antenna with ceramic one through external LNA – no luck
- connecting the chip antenna directly to GPS chip (overriding external LNA) – no luck
- connecting the ceramic antenna directly to GPS chip (overriding external LNA) – no luck

None of these combinations work under open sky (tests were done for more than 20 minutes for each combination) where normal GPS navigation has valid GPS reception. The digital part of GPS receiver chip work great, it sends NMEA output, I can configure it, reconfigure, it is all good. So, I contacted the SkyTraq manufacturer for help and I must say that they were great. They asked for my circuit and board layout, and two days later they replied with modifications and pointed to possible errors with my RF layout. So here is what they said:

The schematics of V634FLPx looks OK.
If there is NMEA output and the current consumption measured for Venus634FLPx is correct, then the connection for V634FLPx should be OK. Then the problem should be the issue of RF section. Please make some modifications as below describes:
1. The GND of LNA should be GNDRF and connected together with Venus634FLPx GNDRF to form a completed GND plane in both Top and Bottom layer.

This I didn't do as their datasheet clearly states "Do not connect GNDRF and GND" and I was not sure that my LNA could be powered through the GNDRF from Venus634FLPx.

2. Don't cross the VCC trace with RF trace since it will cause the impedance dramatically changing.
This tip I also didn't respect completelly as it can be seen in the image below.

3. You can remove C17 and try connect a passive antenna (the ceramic antenna you ever used, but make sure it's a good one) to RF_IN of V634FLPx. But carefully connect the GND of the ceramic antenna to the GNDRF pin of V634FLPx (eg. pin33). This action will bypass the potential problem of input impedance not matching at antenna or LNA. With short connection from patch antenna directly to Venus634FLPx, you should get position fix.
This I have to test again after I make sure my antennas are OK. Now, the question is: are my antennas OK or is my Venus chip factory faulty or damaged?

4. If possible, try to make RF trace as wide as possible.
This I also must do in next version that will come.

robotplatformv1error1
Vcc traced under RF section

robotplatformv1error2
GNDRF of Venus634FLPx not connected to GND of LNA

This all means that I have to wait for next 50 days minimum for the PCBs to arrive and that just kills me. Fedex doesn't help much, trust me. I also decided to change the GPS chip to MN5010 (from SparkFun) and to provide SMA connector on board for external antenna (active or passive). In the meantime I can play with H-bridge controllers, since I didn't test them out yet.

Edited text: My tip would be: If you have even the slightest doubt, don't go for bare Venus GPS chip without some kind of breakout board at first.

robotplatformv1gpsant
Freaky PCB section with LNA SMA661AS

You are welcome to download the project files below, but they are going to change as soon as I start redesigning this board.

P.S. I am sorry for ugly schematics drawing as priority was in designing the PCB.

Author (sent by): Trax

Download counter: 1,418

Rating: (2.97, votes 3780)

Vote:

Date: 28-05-2009

Lokalna verzija ove stranice: Mobilna robotska platforma v1

649_gps_car_eagle_v1.rar

Bookmark and Share Comments (20)

comment [20]

Hello Brian, thanks for the valuable info. I made a few mistakes in this design and since it was a long time ago, the project is currently shelved and will probably remain there :) Great to hear that you had success with this chip, it sure is a good one but I guess it requires a lot of good tuning and PCB revisions to get there!
IP: n/a

comment [19]

These are interesting chips to work with. We've deployed products using the SkyTraq chips for several years and have tens of thousands of vehicle across the USA using them. But our client uses an active antennae. One commenter mentioned the HW update feature, whereby they didn't connect the Analog/RF and Digital portions together internally, so the new parts don't work on an old board (we had to scrape solder-mask off hundreds of boards and short the 2 planes). Then, if you have a passive antennae, you don't need an amplifier. But any passive antennae circuit needs to be tuned. We used these in a handheld design with a small helical-coil antennae encased in ceramic (its available from DigiKey) and it took us MONTHS to match the antennae to the device. If your matching circuit if off by a few pF in capacitance then the input signal reflects off and it doesn't work. So much fun!
IP: 206.116.22.48

comment [18]

Hi. Connect GND_RF and GND pads of Venus module and it should work.
IP: 178.76.204.62

comment [17]

Thanks Chris. Yes I am aware that it takes a long time for the first fix. If I remember correctly there was a SkyTraq software so you could upload ephemeris almanach data into the Venus GPS chip, so I even tried that. It worked for almost an hour under various conditions during my testing :(
IP: n/a

comment [16]

Some thoughts. Ive used the Skytraq Venus 5 and S1315F extensively but not designed PCBs using them, however, i have modified my boards and in my experience, whenever you have done some modification, starting from a cold start, it can take some time for the chip to acquire its first ephemeris fix. A minimum of 13 CONSECUTIVE minutes to get that ephemeris, and then after that you have to make sure the backup battery has power and is delivering it to the chip (at a very low current) continuously or it will ne
IP: 67.83.135.237

comment [15]

@georgy: yep, it was very hot but the digital part worked - it sent UART data, so I thought it was all normal. Anyway, this chip is not cheep so I didn't get another one to compare :(
IP: n/a

comment [14]

Actually when i had this IC working it wasn't hot at all. so if it got hot i think you have your "smoking gun" literally - the humidity that enter the IC will exit as steam when in assembly line and delaminate the IC , breaking and disconnecting internal wires. i had the ultrasonic scan that skytrack provide us with when we investigated this issue. it is clearly seen. but you can check (if you want and can) by removing the IC and solder one manually it needs very small number of connections so SMD solder
IP: 80.178.30.155

comment [13]

I've also had trouble with the Venus634FLPx. In my case, I'm using a MAX2659 as an external LNA, and a similar chip antenna. I'm able to get the Venus634FLPx to acquire a position fix outdoors, but it takes about five minutes. If I attach an external amplified GPS antenna (similar to https://www.sparkfun.com/products/464), the GPS acquires a fix in about 15 seconds, even indoors. I tore apart the external antenna to see what magic it contained, and found a large patch antenna connected to an LNA and
IP: 50.136.93.151

comment [12]

Your PCB looks like a beautiful finished product. Why no prototype? I wouldn't expect anything of any significant complexity to work right on the first try! Paying for and waiting for custom PCBs for each attempt would be way too frustrating and expensive for me. I'd get a Schmart Board and use that.
IP: 64.31.78.5

comment [11]

You can try following to fix your project: 1. RF GND pins of V634FLPx module aren't connected to ground. Input RF stages are simply not powered up. You MUST connect them to ground as shown in PDF: https://www.sparkfun.com/datasheets/GPS/Modules/V634LPx-V634FLPx Layout Guide.pdf 2. Scratch off solder mask from GND polygon around VCC trace under LNA and solder couple of 100pF 0805 or 1206 SMD capacitors across VCC trace. It will help to provide RF connection. 3. If GPS module is fixed you can try to
IP: 178.76.204.62
