POV Propeller Clock Build
Here are a few pictures and videos of the latest project of our forum member [Kizo].
It is a POV propeller clock and it just might be the best one yet! Firmware is written in Bascom-AVR and consists of around 3000 lines of code. The power between the motor and the rotating electronics is transferred wirelessly (see the second video).
"Parts list: ATmega324P @ 20MHz, 64kb Ramtron FRAM, FM1608, 5 x TLC5916 constant current LED drivers, 40 x Cyan PLCC-4 LEDs, A1101 Hall IC, TSOP6238 IR receiver and MIC5209-5.0 LDO V-reg."

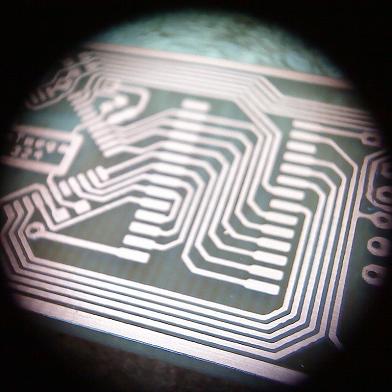

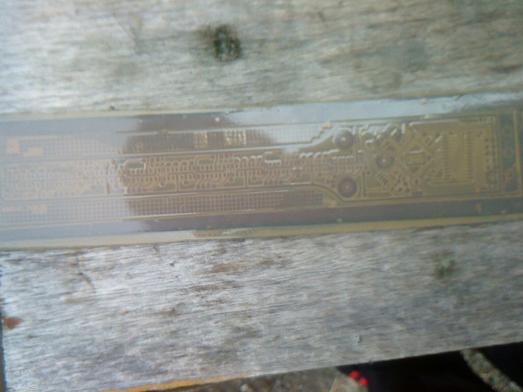

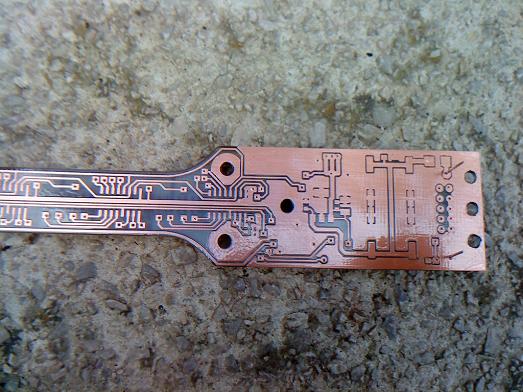

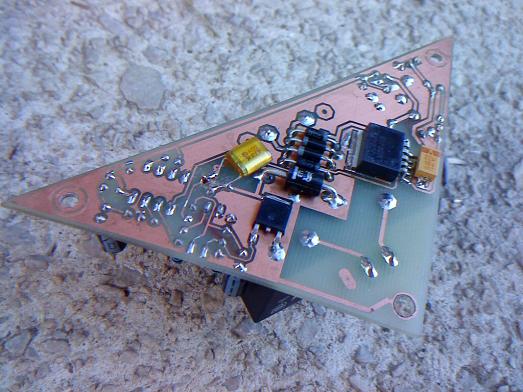

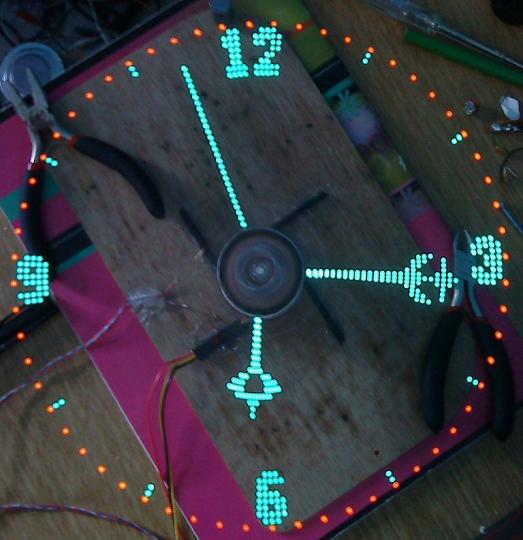

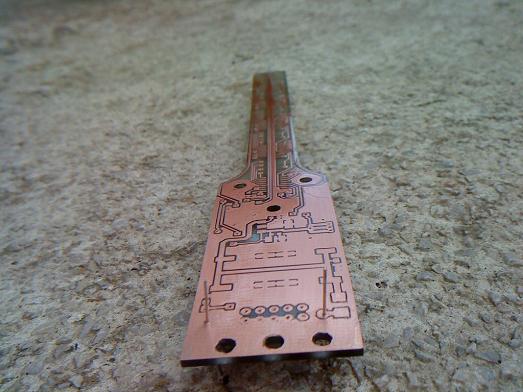

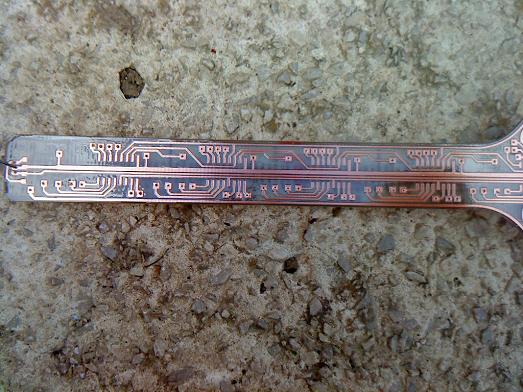

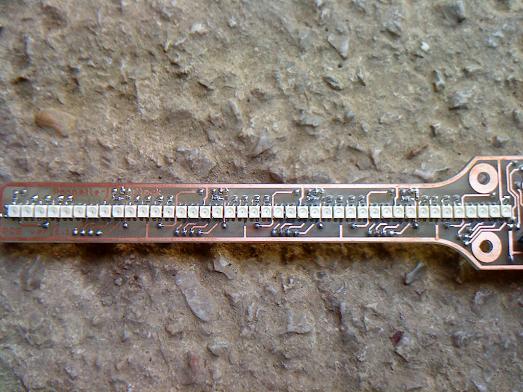

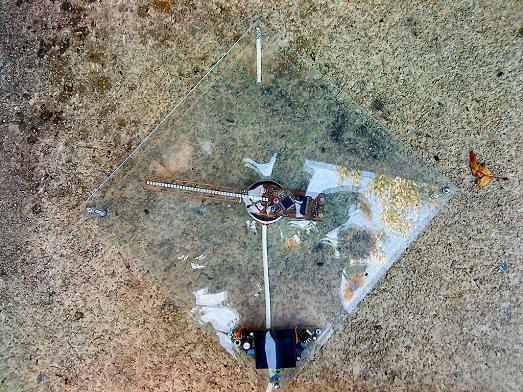

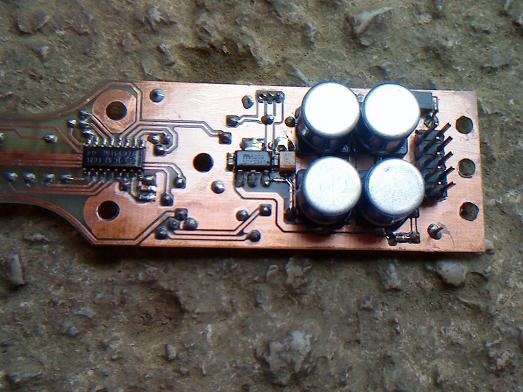

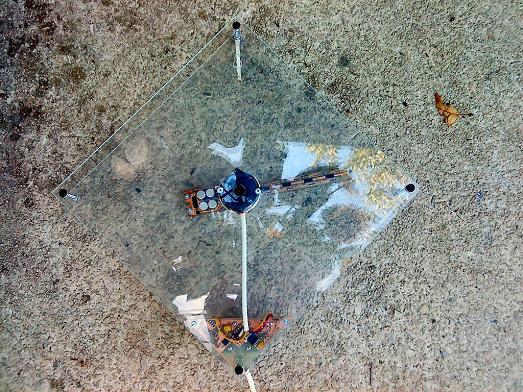

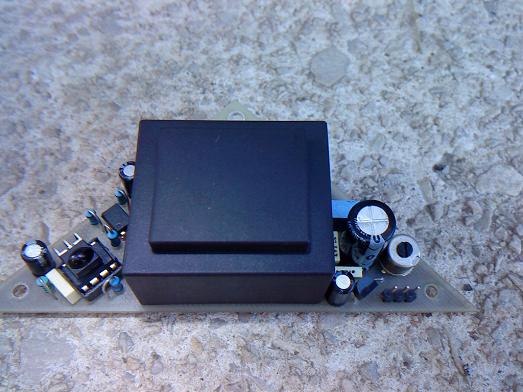

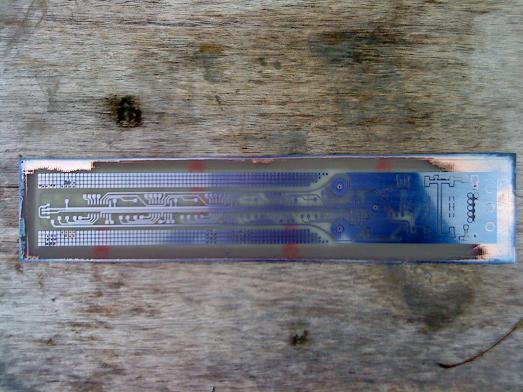

The first and the second version pictures - forum
Images are not sorted:

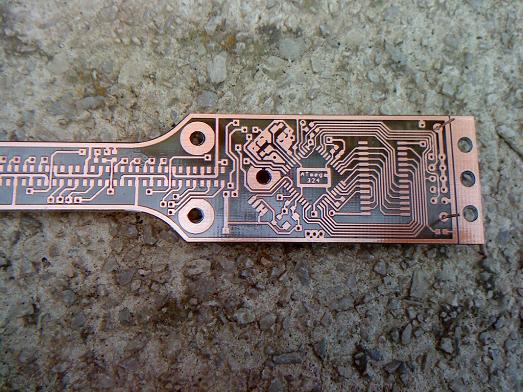

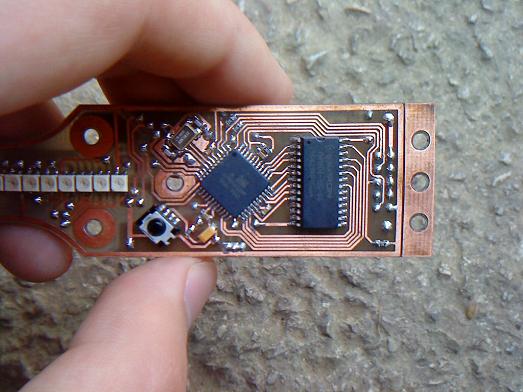

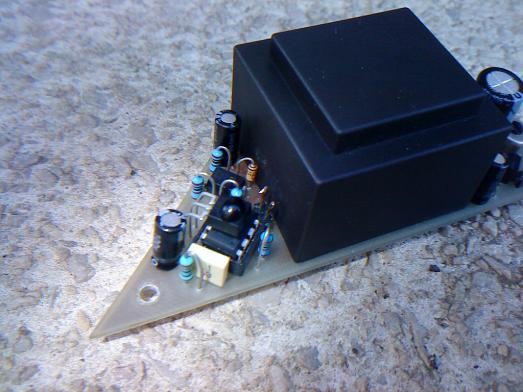

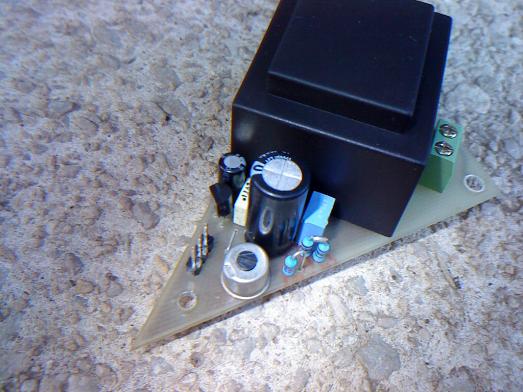

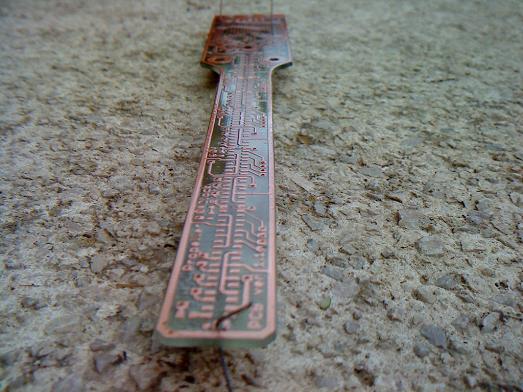

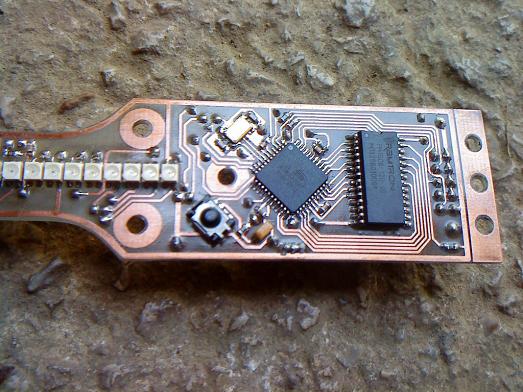

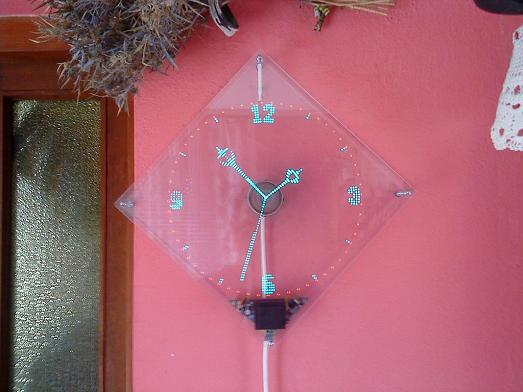

[ Source: Kizo ]
