Re: Construction of Word Clock v1

Postby robertholmberg » 21-03-2014, 16:30

More pictures.

/Robert
Attachments

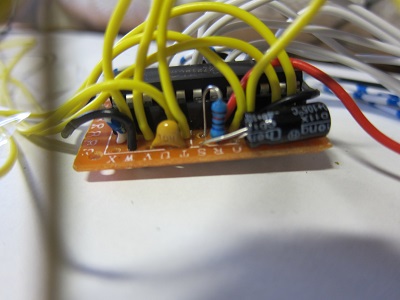

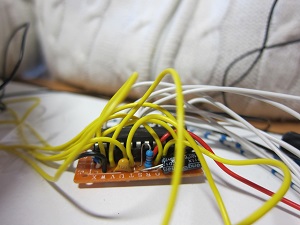

Max7219 Under
Max7219 no 4
Max7219 no 4
Max7219 no 4
robertholmberg

Posts: 8
Joined: 16-03-2014, 22:24

Re: Re: Construction of Word Clock v1


Re: Construction of Word Clock v1

Postby vszabi » 21-03-2014, 17:05

robertholmberg wrote:More pictures.

/Robert



Robert huh!
That's pretty harsh! With the many cords do something urgent! I used to use tape ribbon cable. I think it's so gather all kinds of electrical noise! The crystals and 22pF can be closer to each other. The 2 amp power adapters plenty enough, mine also has a USB cell phone charger. (about 800 mA)
vszabi

Posts: 17
Joined: 03-10-2013, 13:08

Re: Construction of Word Clock v1

Postby robertholmberg » 21-03-2014, 23:49

Haha,

Hmm, was it that bad? I will try to clean it all up if i got time tomorrow, and I guess that the most important one to make short and clean is the three signal cables sending the data from the chips to eachother?

/Robert
robertholmberg

Posts: 8
Joined: 16-03-2014, 22:24

Re: Construction of Word Clock v1

Postby vszabi » 22-03-2014, 08:32

robertholmberg wrote:Haha,

Hmm, was it that bad? I will try to clean it all up if i got time tomorrow, and I guess that the most important one to make short and clean is the three signal cables sending the data from the chips to eachother?

/Robert



Yes, the chip is wired up to do something with absolute guess. There is no ribbon? I used a ribbon cable used pc.

Szabi
vszabi

Posts: 17
Joined: 03-10-2013, 13:08

Re: Construction of Word Clock v1

Postby vszabi » 22-03-2014, 09:28

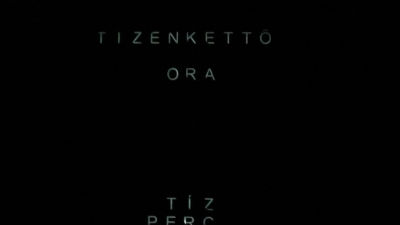

Some pictures of my solution.
Attachments
vszabi

Posts: 17
Joined: 03-10-2013, 13:08

Re: Construction of Word Clock v1

Postby vszabi » 22-03-2014, 09:31

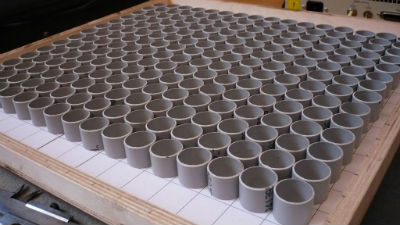

Some pictures of my solution.
Attachments
vszabi

Posts: 17
Joined: 03-10-2013, 13:08

Re: Construction of Word Clock v1

Postby vszabi » 22-03-2014, 09:34

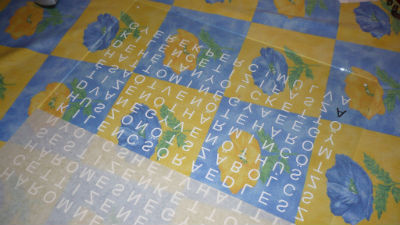

Some pictures of my solution.
Attachments
vszabi

Posts: 17
Joined: 03-10-2013, 13:08

Re: Construction of Word Clock v1

Postby robertholmberg » 23-03-2014, 17:06

Hi,

I havent had time to test it properly and will not until next week, i did the worst corner and replaced it with such a cable which i have plenty of, and i think it might have been the problem.

Thanks for the input. And will be back with the result.

/Robert
robertholmberg

Posts: 8
Joined: 16-03-2014, 22:24

Re: Construction of Word Clock v1

Postby romi » 17-04-2014, 00:18

Hello
How do I add additional characters to the file font_7x5.h
for example, the following
0x04, 0x2A, 0x6A, 0xAA, 0x10,
but this character is not displayed
romi

Posts: 7
Joined: 15-04-2014, 01:11

Re: Construction of Word Clock v1

Postby trax » 17-04-2014, 07:59

You should replace some character that you are not using with that bitmap (your new 5 bytes). That's what I did with character for temperature degree symbol. Look for it in font_7x5.h file and do the same!
User avatar
trax

Posts: 3463
Joined: 08-01-2005, 18:04
Location: 75k, BA

Re: Re: Construction of Word Clock v1


Re: Construction of Word Clock v1

Postby romi » 24-05-2014, 10:48

Witam

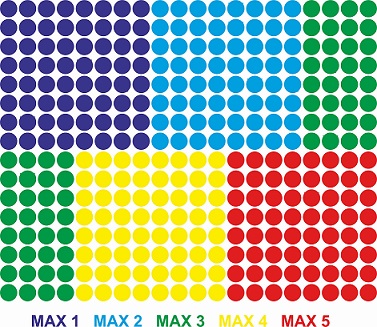

Co bym musiał zmienic w programie, żeby dodać jeszcze jeden MAX (64 Diod)
Dodam, że nie znam sie na programowaniu

Hello
What would I have to change in the teeth add one MAX (64 Diodes)
I would add that it does not know much about programming
Attachments
romi

Posts: 7
Joined: 15-04-2014, 01:11

Re: Construction of Word Clock v1

Postby trax » 26-05-2014, 07:17

Hello,

It can be done, but you will need to find someone to help you with the code. I really don't have enough time right now, sorry.

Best regards,
Trax
User avatar
trax

Posts: 3463
Joined: 08-01-2005, 18:04
Location: 75k, BA

Re: Construction of Word Clock v1

Postby romi » 26-05-2014, 09:46

Ok
Thank you
romi

Posts: 7
Joined: 15-04-2014, 01:11

Re: Construction of Word Clock v1

Postby romi » 05-06-2014, 16:50

Hello
I've added yet another layout MAX7219
in the file " lang " Now I
Code: Select all
// MAX 2   // MAX 3
   0b00000000, 0b00000000,      // not on display
   0b00000000, 0b00000000,      // not on display
   0b00000000, 0b00000000,
   0b00000000, 0b00000000,
   0b00000000, 0b00000000,
   0b00000000, 0b00000000,
   0b00000000, 0b00000000,
   0b00000000, 0b00000000,
   // MAX 1   // MAX 4
   0b00000000, 0b00000000,
   0b00000000, 0b00000000,
   0b00000000, 0b00000000,
   0b00000000, 0b00000000,
   0b00000000, 0b00000000,
   0b00000000, 0b00000000,
   0b00000000, 0b00000000,
   0b00000000, 0b00000000,
   // MAX 5
   0b00000000,
   0b00000000,
   0b00000000,
   0b00000000,
   0b00000000,
   0b00000000,
   0b00000000,
   0b00000000,

and in " wc.c " changed to this piece of code :
Code: Select all
// fetch the appropriate arrays from PGM space into RAM
   char hour_arr[40];
   memcpy_P(hour_arr, (PGM_P)pgm_read_word( &MAX_h[time_h-1] ), 40);
   char minute_arr[40];
   memcpy_P(minute_arr, (PGM_P)pgm_read_word( &MAX_m[time_m] ), 40);

   // turn ON current hour's LEDs for all MAXs that might have an ON LED for this hour
   // we will turn ON current minute's LEDs also here
   // we do that 8 times for each MAX, for each "column" of data, even though it is actually row data because that's how I soldered the LEDs :(
   for(uint8_t i=0; i<8; i++)
   {
      // MAX 1
      display_matrix[0][i] |= hour_arr[16+(i*2)]   | minute_arr[16+(i*2)];      // turn ON hours & minutes that need to be ON for this MAX
      // MAX 2
      display_matrix[1][i] |= hour_arr[i*2]      | minute_arr[i*2];         // turn ON hours & minutes that need to be ON for this MAX
      // MAX 3
      display_matrix[2][i] |= hour_arr[(i*2)+1]   | minute_arr[(i*2)+1];      // turn ON hours & minutes that need to be ON for this MAX
      // MAX 4
      display_matrix[3][i] |= hour_arr[17+(i*2)]   | minute_arr[17+(i*2)];      // turn ON hours & minutes that need to be ON for this MAX
      // MAX 5
      display_matrix[4][i] |= hour_arr[24+(i*2)]   | minute_arr[24+(i*2)];      // turn ON hours & minutes that need to be ON for this MAX

   }

And something is wrong because it shows me only one half
Where can be a problem

sorry for my English
Translated by Google Translate
romi

Posts: 7
Joined: 15-04-2014, 01:11

Re: Construction of Word Clock v1

Postby romi » 13-06-2014, 13:57

Hello
This display ok
lang file I have now :
Code: Select all
// MAX 2     // MAX 3   // MAX 6
   0b00000000, 0b00000000, 0b00000000,   // not on display
   0b00000000, 0b00000000 ,0b00000000,   // not on display
   0b00000000, 0b00000000 ,0b00000000,
   0b00000000, 0b00000000 ,0b00000000,
   0b00000000, 0b00000000 ,0b00000000,
   0b00000000, 0b00000000 ,0b00000000,
   0b00000000, 0b00000000 ,0b00000000,
   0b00000000, 0b00000000 ,0b00000000,
   // MAX 1    // MAX 4    // MAX 5
   0b00000000, 0b00000000, 0b00000000,
   0b00000000, 0b00000000,   0b00000000,
   0b00000000, 0b00000000,   0b00000000,
   0b00000000, 0b00000000,   0b00000000,
   0b00000000, 0b00000000,   0b00000000,
   0b00000000, 0b00000000,   0b00000000,
   0b00000000, 0b00000000,   0b00000000,
   0b00000000, 0b00000000,   0b00000000,

wc.c file I have now:
Code: Select all
// MAX 1
      display_matrix[0][i] |= hour_arr[24+(i*3)]   | minute_arr[24+(i*3)]     | sekundy_arr[24+(i*3)];      // turn ON hours & minutes that need to be ON for this MAX
      // MAX 2
      display_matrix[1][i] |= hour_arr[i*3]      | minute_arr[i*3]     | sekundy_arr[i*3];              // turn ON hours & minutes that need to be ON for this MAX
      // MAX 3
      display_matrix[2][i] |= hour_arr[(i*3)+1]   | minute_arr[(i*3)+1]      | sekundy_arr[(i*3)+1];      // turn ON hours & minutes that need to be ON for this MAX
      // MAX 4
      display_matrix[3][i] |= hour_arr[25+(i*3)]   | minute_arr[25+(i*3)]     | sekundy_arr[25+(i*3)];      // turn ON hours & minutes that need to be ON for this MAX
      // MAX 5
      display_matrix[4][i] |= hour_arr[26+(i*3)]      | minute_arr[26+(i*3)]   | sekundy_arr[26+(i*3)];          // turn ON hours & minutes that need to be ON for this MAX
      // MAX 6
      display_matrix[5][i] |= hour_arr[(i*3)+2]   | minute_arr[(i*3)+2] | sekundy_arr[(i*3)+2];              // turn ON hours & minutes that need to be ON for this MAX

Now is good. But I do not know how to change that date is displayed on the 3 MAX.
(MAX 1 MAX2 MAX3)
How to find moments of time colleague and was to be able to help me with the code be incorporated
romi

Posts: 7
Joined: 15-04-2014, 01:11

Re: Construction of Word Clock v1

Postby trax » 13-06-2014, 14:35

Hello,
I am currently very busy so I can't help you right now. Maybe there is someone else that can take a look at the code here?
Regards!
User avatar
trax

Posts: 3463
Joined: 08-01-2005, 18:04
Location: 75k, BA

Re: Construction of Word Clock v1

Postby romi » 13-06-2014, 15:12

That I can not find anyone to help with the processing of code: (
Practically just about displaying the date and progressbar on 3max, I know more or less an every where change, but l can not do that, everything else is ok
It's hard I'll keep looking maybe someone from this forum will help.
romi

Posts: 7
Joined: 15-04-2014, 01:11

Re: Construction of Word Clock v1

Postby romi » 04-07-2014, 22:47

Hello
I know that my friend does not have time right now, but if you can help me with display_progressbar that was displayed on three MAX7219.
Everything else I was able to somehow change the method of trial and error, but this can not cope.

Code: Select all
// progressbar, top part of display
void display_progressbar(uint8_t value, uint8_t maximum)
{
   uint8_t rot = ((16/ maximum) * value) +0; // how many times to rotate right
   uint32_t pb = 0xffff0000; // as it rotates right, we "make more progress" :)
   pb = pb >> rot; // moved to the right as much as required

   // move once more because it is odd and at maximum
   if( maximum==value && value%2 ) pb = pb >> 1;

   // lets put this progressbar into the display_matrix
   // we put byte 0 to MAX 3, and byte 1 to MAX 2, and we ignore two MSB bytes of "pb"
   uint8_t pb_MAX3 = (uint8_t)pb;
   uint8_t pb_MAX2 = (uint8_t)( pb >> 8 );

   // skip first two rows, they are used for dots. also don't draw the bottom line...
   for(uint8_t i=2; i<8-1; i++)
   {
      display_matrix[1][i] = pb_MAX2;
      display_matrix[2][i] = pb_MAX3;
   }

   // send the "display matrix" to all MAXes on the bus
   max72xx_send_matrix();

   return;
}


MAX2→MAX3 . MAX6
...↑.......↓......↑
MAX1 . MAX4→MAX5

I tried this:
Code: Select all
// progressbar, top part of display
void display_progressbar(uint8_t value, uint8_t maximum)
{
   uint8_t rot = ((24 / maximum) * value) +0; // how many times to rotate right
   uint32_t pb = 0xffff0000; // as it rotates right, we "make more progress" :)
   pb = pb >> rot; // moved to the right as much as required

   // move once more because it is odd and at maximum
   if( maximum==value && value%2 ) pb = pb >> 1;

   // lets put this progressbar into the display_matrix
   // we put byte 0 to MAX 3, and byte 1 to MAX 2, and we ignore two MSB bytes of "pb"
   uint8_t pb_MAX3 = (uint8_t)pb;
   uint8_t pb_MAX2 = (uint8_t)( pb >> 8 );
   uint8_t pb_MAX6 = (uint8_t)( pb >> 16 );

   // skip first two rows, they are used for dots. also don't draw the bottom line...
   for(uint8_t i=2; i<8-1; i++)
   {
      display_matrix[1][i] = pb_MAX2;
      display_matrix[2][i] = pb_MAX3;
      display_matrix[5][i] = pb_MAX6;
   }

   // send the "display matrix" to all MAXes on the bus
   max72xx_send_matrix();

   return;
}

but it is not working as it should
romi

Posts: 7
Joined: 15-04-2014, 01:11

Re: Construction of Word Clock v1

Postby MIICHALUS » 30-03-2015, 14:39

Hello

Does enybody can help me??
I dont know how to adjust functions responsible for the rows and columns.I tried everything and still is not right.I attached photo of my hardware connection
Attachments
MIICHALUS

Posts: 3
Joined: 30-03-2015, 14:12

Re: Construction of Word Clock v1

Postby trax » 31-03-2015, 14:42

Hello,

Have you read the first page of this topic? There is an explanation on how to identify rows and columns. It is not *that* easy though, but it can be done in couple of minutes :(

Trax
User avatar
trax

Posts: 3463
Joined: 08-01-2005, 18:04
Location: 75k, BA
