Postby damirmrso » 02-03-2008, 15:37

Da nije neka zabrana al cisto sumnjam.izgleda da nemoze niko!Mozda je neki problem do njih!Steta za sve te materijale.
User avatar
damirmrso

Posts: 48
Joined: 24-06-2007, 21:32
Location: Novi Sad

Re:


Postby trax » 02-03-2008, 19:34

Kod mene radi...
User avatar
trax

Posts: 3487
Joined: 08-01-2005, 18:04
Location: 75k, BA

Postby stojke369 » 02-03-2008, 19:49

Proradilo sad radi i kod mene.Sto iskljuci opciju quote na predhodni post :?: :D
User avatar
stojke369

Posts: 3913
Joined: 19-10-2005, 01:41
Location: Srbija-Paracin

Postby trax » 02-03-2008, 19:53

Pa nemas razloga quotirat poslijednji post, jednostavno nema smisla :D
User avatar
trax

Posts: 3487
Joined: 08-01-2005, 18:04
Location: 75k, BA

Postby stojke369 » 02-03-2008, 20:13

:D

Code: Select all
Muris

Схему и фотографии прислал администратор дружественного нам сайта из Боснии.
Радиус действия по заявлению автора 1км!


:arrow: http://vrtp.ru/index.php?act=categories ... ticle=1833
User avatar
stojke369

Posts: 3913
Joined: 19-10-2005, 01:41
Location: Srbija-Paracin

Postby trax » 02-03-2008, 20:19

Haha, da da, poslao sam i njemu slike. Evo sad sam mu poslao i ovaj fajl:

http://www.elektronika.ba/forum/uploadz ... _R0464.rar
User avatar
trax

Posts: 3487
Joined: 08-01-2005, 18:04
Location: 75k, BA

Postby stojke369 » 02-03-2008, 20:32

:D

Razmenite banere.Da malo i rusi posete www.elektronika.ba
User avatar
stojke369

Posts: 3913
Joined: 19-10-2005, 01:41
Location: Srbija-Paracin

Postby stojke369 » 03-03-2008, 17:01

Moze li nekako da se prebaci ova stranica na engleski
User avatar
stojke369

Posts: 3913
Joined: 19-10-2005, 01:41
Location: Srbija-Paracin

Postby trax » 03-03-2008, 19:48

ta ruska moze, idi na google translator :) ili na av.com i uradi translate.
User avatar
trax

Posts: 3487
Joined: 08-01-2005, 18:04
Location: 75k, BA

Postby damirmrso » 08-03-2008, 20:09

Evo na ovom linku imate tehničku dokumentaciju o ruskim tranzistorima za zamenu istoimenih.
http://www.platan.ru/cgi-bin/qwery_td.p ... art=platan
User avatar
damirmrso

Posts: 48
Joined: 24-06-2007, 21:32
Location: Novi Sad

Re:


Postby stojke369 » 10-03-2008, 03:07

trax wrote:ta ruska moze, idi na google translator :) ili na av.com i uradi translate.


Pazi sad ovo ja sam uspeo da je prevedem ali nece da me prepozna kao registrovanog clana cim se registrujem on me vraca na ruski jezik.Ima li neka fora da mogu da se registrujem i da mi ostane na engleskom :?:

Pod "registrujem" sam podrazuevao prijavljivanje
User avatar
stojke369

Posts: 3913
Joined: 19-10-2005, 01:41
Location: Srbija-Paracin

Postby damirmrso » 26-03-2008, 09:43

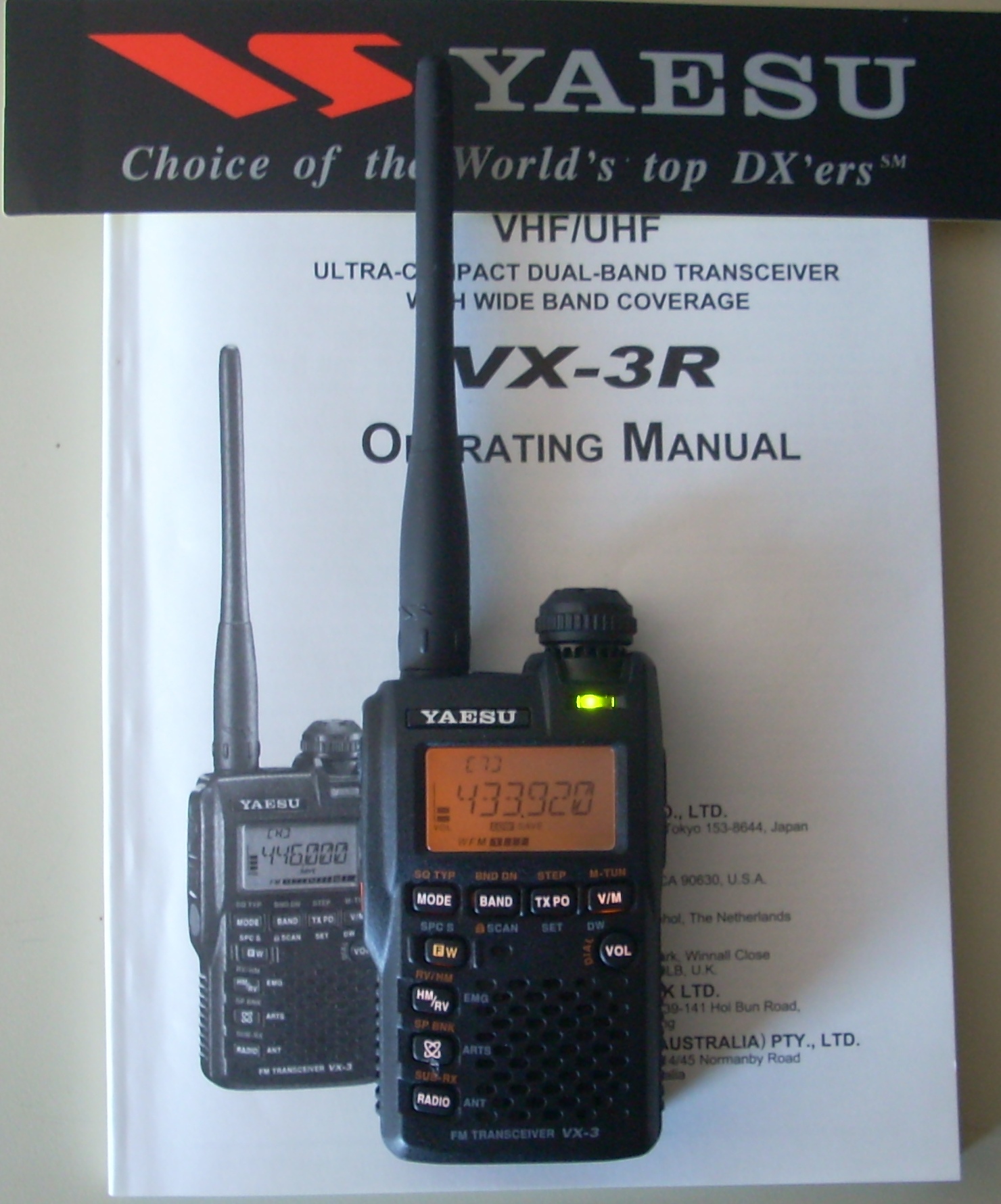

Napokon sam nabavio super skener i radio stanicu Yaesu VX-3 sve u jednom.Evo slike uređaja.
Specification:

Frequency Ranges: RX 0.5-1.8 MHz (AM Broadcast)

1.8-30 MHz (SW Band)
30-76 MHz (50 MHz HAM)
76-108 MHz (FM)
108-137 MHz (Air Band)
137-174 MHz (144 MHz HAM)
174-222 MHz (VHF TV)
222-420 MHz (ACT1)
420-470 MHz (430 MHz HAM)
470-800(729) MHz (UHF TV)
(757-774) MHz (UHF TV)
800-999 MHz (GEN2; USA Cellular Blocked)

TX 140-173 MHz , 420-469 MHz

Channel Steps: 5/9/8.33/10/12.5/15/20/25/50/100 kHz

Frequency Stability: ±5 ppm (–10 °C to +60 °C)

Repeater Shift: ±600 kHz (144 MHz)

±1.6/5.0/7.6 MHz (430 MHz)

Emission Type: F2D , F3E

Antenna Impedance: 50 OHM

Supply Voltage: Nominal:3.7 V DC, Negative Ground
Operating: 3.5 ~ 7 V, Negative Ground (EXT DC Jack)
5.0 ~ 7 V, Negative Ground (EXT DC Jack with Charging)

Current Consumption: 120 mA (Receive)
60 mA (Standby, Saver Off)
30 mA (Standby, Saver On, Save Ratio 1:2)
50 mA (Radio Band Receive)
100 µA (Auto Power Off)
1.3 A (1.5 W Tx , 144 MHz) 3.7 V DC
1.6 A (3 W Tx , 144 MHz) 6 V DC
1.2 A (1 W Tx , 430 MHz) 3.7 V DC
1.8 A (2 W Tx , 430 MHz) 6 V DC



Operating Temperature: –20 °C to +60 °C
Case Size (W x H x D): 1.9” x 3.2” x 0.9” (47 x 81 x 23 mm)

(W/O knob & antenna)

Weight: 4.6 oz (130 g) With FNB-82LI & antenna

Transmitter RF Power Output: 1.5 W (@ 4.5 V AA x 3 or 3.7 V FNB-82LI 144 MHz)
3 W (@ 6 V or EXT DC 144 MHz)
1 W (@4.5 V AA x 3 or 3.7 V FNB-82LI 430 MHz)
2 W (@ 6 V or EXT DC 430 MHz)
Low 0.1 W (@ 4.5 V AA x 3 or 3.7 V FNB-82LI)
Low 0.3 W (@ 6 V or EXT DC)

Modulation Type: Variable Reactance F2D , F3E

Maximum Deviation: ±5 kHz (F2D , F3E)

Spurious Emission: At least 60 dB below (HIGH)
At least 50 dB below (LOW or less than 1 W)

Microphone Impedance: 2 k OhM[/img]

http://www.elektronika.ba/forum/uploadz ... u_VX-3.jpg
User avatar
damirmrso

Posts: 48
Joined: 24-06-2007, 21:32
Location: Novi Sad

Postby Ford » 05-06-2008, 19:47

Lijepa ti je ova radio stanica a ujedno i skener...super je, samo neznam gdje si napisao cijenu tog uređaja...koliko si ga platio
User avatar
Ford

Posts: 524
Joined: 02-04-2008, 17:21
Location: CELJE JN76PF

Postby damirmrso » 05-06-2008, 20:00

Skener sam platio 220e a nasao sam ga preko oglasa http://www.radista.info/notices/index.htm ,a vidim da je lik od koga sam kupio skener stavio svoj bener na tom sajtu NESA TISA :wink:
User avatar
damirmrso

Posts: 48
Joined: 24-06-2007, 21:32
Location: Novi Sad

Postby Smjesko » 28-06-2008, 15:04

Evo jos jedne stranice s teorijom o neizbjeznoj temi ovdje - bubama. Svi oni novi genijalci koji imaju bezbroj pitanja o bubama neka prvo procitaju sto ovdje pise :!:
http://hr-elektronika.tripod.com/minipred.htm
User avatar
Smjesko

Posts: 4012
Joined: 26-12-2005, 17:12

Postby no_name- » 28-06-2008, 20:29

VEČ PROČITANO... :lol:
User avatar
no_name-

Posts: 113
Joined: 18-05-2008, 12:37
Location: Hrvatska, Požega

Re: Evo PUNO materijala o spy bezicnim bubama

Postby damirmrso » 08-05-2009, 08:15

Zamene za ruske tranzistore!
User avatar
damirmrso

Posts: 48
Joined: 24-06-2007, 21:32
Location: Novi Sad

Re: Evo PUNO materijala o spy bezicnim bubama

Postby damirmrso » 09-05-2009, 10:01

Evo linka za zamene ruskih tranzistora i IC kola.
http://rapidshare(dot)com/files/230885985/r ... i.rar.html
User avatar
damirmrso

Posts: 48
Joined: 24-06-2007, 21:32
Location: Novi Sad

Re: Evo PUNO materijala o spy bezicnim bubama

Postby damirmrso » 03-06-2009, 18:26

Evo jedna super knliga o spy projektima i rešenjima.
http://narod.ru/disk/9430838000/101%20S ... s.pdf.html


101 Spy Gadgets for the Evil Genius

This book contains complete plans for a wide variety of spy gadgets, ranging from very basic projects to advanced projects that use the cutting edge of technology. Although each plan results in a working project, all of the plans in this book can be modified, mixed or matched to create many additional useful tools that can be used in the covert acquisition of "secret" information. The technology is presented in a way that allows the reader to build the projects using whatever pans are available, and although the plans may call for an exact part number, most of the technology used can be substituted for similar easy-to-find parts.
I hope that IOJ Spy Gadgets for the Evil Genius will help you expand your knowledge about many different types of technology, and how you can modify these technological principles for your own amusement and enjoyment
